06 - Qubit demos: working with a real qubit
Objective: Practice tuning up a single superconducting qubit.
The measurements in this notebook were used for the QICK paper https://arxiv.org/abs/2110.00557.
These measurements were made a while ago, and the QICK API has changed a lot in the meantime. We try to keep this demo up to date and we make sure it runs, but we cannot guarantee that it still behaves correctly when connected to a real qubit.
It’s recommended to look at the other demos to get an understanding of how the QICK programs in this demo work. You will learn things that you should know when writing your own programs.
The following collections of QICK measurement code (shared by QICK collaborators) may also be helpful:
[1]:
%pylab inline
from qick import *
from tqdm.notebook import tqdm
Populating the interactive namespace from numpy and matplotlib
Helper functions
[2]:
#Figure params
rcParams['figure.figsize'] = 16, 8
rcParams.update({'font.size': 22})
#helper functions
def hist(data=None, plot=True, ran=1.0):
ig = data[0]
qg = data[1]
ie = data[2]
qe = data[3]
numbins = 200
xg, yg = np.median(ig), np.median(qg)
xe, ye = np.median(ie), np.median(qe)
if plot==True:
fig, axs = plt.subplots(nrows=1, ncols=3, figsize=(16, 4))
fig.tight_layout()
axs[0].scatter(ig, qg, label='g', color='b', marker='*')
axs[0].scatter(ie, qe, label='e', color='r', marker='*')
axs[0].scatter(xg, yg, color='k', marker='o')
axs[0].scatter(xe, ye, color='k', marker='o')
axs[0].set_xlabel('I (a.u.)')
axs[0].set_ylabel('Q (a.u.)')
axs[0].legend(loc='upper right')
axs[0].set_title('Unrotated')
axs[0].axis('equal')
"""Compute the rotation angle"""
theta = -np.arctan2((ye-yg),(xe-xg))
"""Rotate the IQ data"""
ig_new = ig*np.cos(theta) - qg*np.sin(theta)
qg_new = ig*np.sin(theta) + qg*np.cos(theta)
ie_new = ie*np.cos(theta) - qe*np.sin(theta)
qe_new = ie*np.sin(theta) + qe*np.cos(theta)
"""New means of each blob"""
xg, yg = np.median(ig_new), np.median(qg_new)
xe, ye = np.median(ie_new), np.median(qe_new)
#print(xg, xe)
xlims = [xg-ran, xg+ran]
ylims = [yg-ran, yg+ran]
if plot==True:
axs[1].scatter(ig_new, qg_new, label='g', color='b', marker='*')
axs[1].scatter(ie_new, qe_new, label='e', color='r', marker='*')
axs[1].scatter(xg, yg, color='k', marker='o')
axs[1].scatter(xe, ye, color='k', marker='o')
axs[1].set_xlabel('I (a.u.)')
axs[1].legend(loc='lower right')
axs[1].set_title('Rotated')
axs[1].axis('equal')
"""X and Y ranges for histogram"""
ng, binsg, pg = axs[2].hist(ig_new, bins=numbins, range = xlims, color='b', label='g', alpha=0.5)
ne, binse, pe = axs[2].hist(ie_new, bins=numbins, range = xlims, color='r', label='e', alpha=0.5)
axs[2].set_xlabel('I(a.u.)')
else:
ng, binsg = np.histogram(ig_new, bins=numbins, range = xlims)
ne, binse = np.histogram(ie_new, bins=numbins, range = xlims)
"""Compute the fidelity using overlap of the histograms"""
contrast = np.abs(((np.cumsum(ng) - np.cumsum(ne)) / (0.5*ng.sum() + 0.5*ne.sum())))
tind=contrast.argmax()
threshold=binsg[tind]
fid = contrast[tind]
axs[2].set_title(f"Fidelity = {fid*100:.2f}%")
return fid, threshold, theta
[1]:
from IPython.display import Image, display
display(Image(filename='images/QICK_wiring_new.png', embed=True))
Configuring the channels

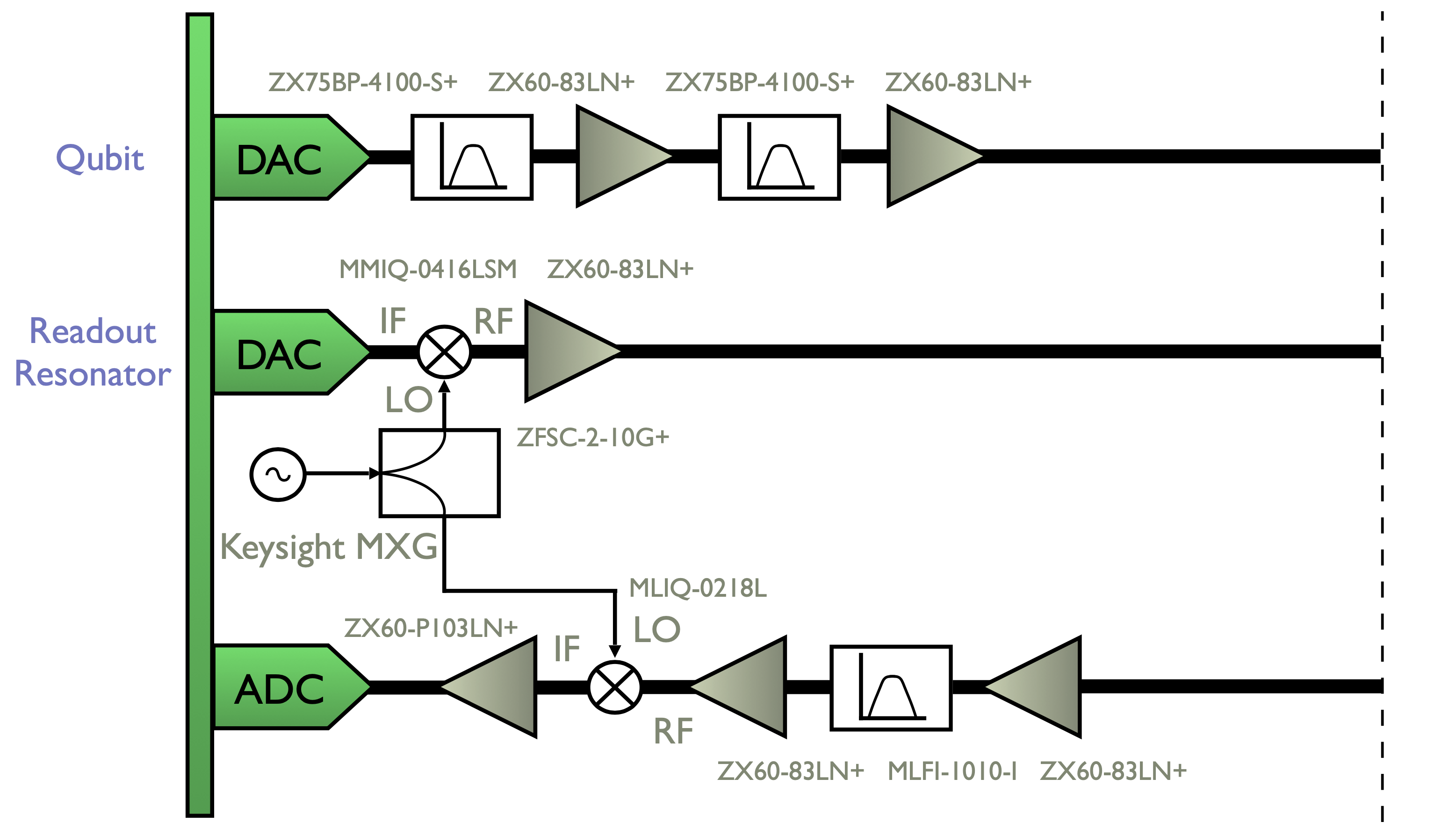

The data in this notebook was taken with a wiring diagram similar to the above. The QICK has eight RF DACs which can be configured in multiple ways. Using the QICK, two RF DACs are needed to control the qubit and its readout resonator, respectively. Also, the qubit control pulses (< 6 GHz) were directly synthesized without the use of an analog mixer. Note that the QICK RF board was not used for these measurements, only the ZCU111 evaluation board plus the analog components specified in the diagram.
[3]:
# Load bitstream with custom overlay
soc = QickSoc()
# Since we're running locally on the QICK, we don't need a separate QickConfig object.
# If running remotely, you could generate a QickConfig from the QickSoc:
# soccfg = QickConfig(soc.get_cfg())
# or save the config to file, and load it later:
# with open("qick_config.json", "w") as f:
# f.write(soc.dump_cfg())
# soccfg = QickConfig("qick_config.json")
soccfg = soc
hw_cfg={"jpa_ch":6,
"res_ch":5,
"qubit_ch":2,
"storage_ch":0
}
readout_cfg={
"readout_length":soccfg.us2cycles(3.0, gen_ch=5), # [Clock ticks]
"f_res": 99.775 +0.18, # [MHz]
"res_phase": 0,
"adc_trig_offset": 275, # [Clock ticks]
"res_gain":10000
}
qubit_cfg={
"sigma":soccfg.us2cycles(0.025, gen_ch=2),
"pi_gain": 11500,
"pi2_gain":11500//2,
"f_ge":4743.041802067813,
"relax_delay":500
}
TOF Measurement
Measures the “time of flight” of the measurement pulse. The time of flight is the time at which the measurement pulse appears in the ADC buffer. We only want to start capturing data from this point in time onwards. We store this time of flight in the parameter readout_cfg[“adc_trig_offset”] .
[4]:
class LoopbackProgram(AveragerProgram):
def initialize(self):
cfg=self.cfg
# self.declare_gen(ch=cfg["jpa_ch"], nqz=1) #JPA
self.declare_gen(ch=cfg["res_ch"], nqz=1) #Readout
# self.declare_gen(ch=cfg["qubit_ch"], nqz=2) #Qubit
# self.declare_gen(ch=cfg["storage_ch"], nqz=2) #Storage
for ch in [0,1]: #configure the readout lengths and downconversion frequencies
self.declare_readout(ch=ch, length=cfg["readout_length"],
freq=cfg["frequency"], gen_ch=cfg["res_ch"])
freq=self.freq2reg(cfg["frequency"], gen_ch=cfg["res_ch"], ro_ch=0) # convert frequency to dac frequency (ensuring it is an available adc frequency)
self.set_pulse_registers(ch=cfg["res_ch"], style="const", freq=freq, phase=0, gain=cfg["pulse_gain"],
length=cfg["pulse_length"])
self.synci(200) # give processor some time to configure pulses
def body(self):
cfg=self.cfg
self.measure(pulse_ch=cfg["res_ch"],
adcs=[0,1],
adc_trig_offset=cfg["adc_trig_offset"],
t=0,
wait=True,
syncdelay=self.us2cycles(cfg["relax_delay"]))
expt_config={
"reps":1, # --Fixed
"pulse_length":600, # [Clock ticks]
"readout_length":1000, # [Clock ticks]
"pulse_gain":5000, # [DAC units]
"frequency": 100, # [MHz]
"adc_trig_offset": 0, # [Clock ticks]
"soft_avgs":1000
}
config={**hw_cfg,**readout_cfg,**qubit_cfg,**expt_config}
prog =LoopbackProgram(soccfg, config)
adc1, adc2 = prog.acquire_decimated(soc, progress=True)
# Plot results.
subplot(111, title=f"Averages = {config['soft_avgs']}", xlabel="Clock ticks", ylabel="Transmission (adc levels)")
plot(adc1[0], label="I value; ADC 0")
plot(adc1[1], label="Q value; ADC 0")
plot(adc2[0], label="I value; ADC 1")
plot(adc2[1], label="Q value; ADC 1")
legend()
axvline(readout_cfg["adc_trig_offset"])
[4]:
<matplotlib.lines.Line2D at 0x7f86055be0>
Single tone (Resonator) Spectroscopy
Measures the resonant frequency of the readout resonator when the qubit is in its ground state. We store this resonant frequency in the parameter readout_cfg[“f_res”] .
[5]:
class SingleToneSpectroscopyProgram(AveragerProgram):
def initialize(self):
cfg=self.cfg
self.declare_gen(ch=cfg["res_ch"], nqz=1) #Readout
for ch in [0,1]: #configure the readout lengths and downconversion frequencies
self.declare_readout(ch=ch, length=cfg["readout_length"],
freq=cfg["frequency"], gen_ch=cfg["res_ch"])
freq=self.freq2reg(cfg["frequency"], gen_ch=cfg["res_ch"], ro_ch=0) # convert frequency to dac frequency (ensuring it is an available adc frequency)
self.set_pulse_registers(ch=cfg["res_ch"], style="const", freq=freq, phase=0, gain=cfg["res_gain"],
length=cfg["readout_length"])
self.synci(200) # give processor some time to configure pulses
def body(self):
self.measure(pulse_ch=self.cfg["res_ch"],
adcs=[0,1],
adc_trig_offset=self.cfg["adc_trig_offset"],
wait=True,
syncdelay=self.us2cycles(self.cfg["relax_delay"]))
[6]:
expt_cfg={"reps":500, "relax_delay":10,
"start":95, "step":0.025, "expts":400
}
config={**hw_cfg,**readout_cfg,**qubit_cfg,**expt_cfg} #combine configs
fpts=expt_cfg["start"] + expt_cfg["step"]*np.arange(expt_cfg["expts"])
amps=[]
for f in tqdm(fpts):
config["frequency"]=f
rspec=SingleToneSpectroscopyProgram(soccfg, config)
avgi,avgq=rspec.acquire(soc)
amp=np.abs(avgi[0][0]+1j*avgq[0][0])
amps.append(amp)
amps=np.array(amps)
plt.subplot(111,title="Resonator Spectroscopy", xlabel="Resonator Frequency (MHz)", ylabel="Amp. (adc level)")
plt.plot(fpts, amps,'o-')
max_freq=fpts[np.argmax(amps)]
plt.show()
Single Shot
Measures the single shot readout fidelity of the system. We acquire single shot (I, Q) readout values by first preparing the qubit in its ground (blue dots) a certain number of times (in the below demo we take 5000 shots) and then preparing the qubit in its excited state (red dots) the same number of times. We then extract two parameters which are used to optimize the associated readout fidelity: the rotation angle of the IQ blobs and the threshold that classifies the two qubit states (ground and excited). We store these two parameters here readout_cfg[“res_phase”] and readout_cfg[“threshold”] .
Note that this experiment already assumes that you have found your qubit frequency and \(\pi\) pulse amplitude. It is placed towards the top of this demo notebook because every time you reset the QICK firmware the single shot angle and threshold changes. So, this experiment is used to calibrate any experiment below that uses single shot data (such as the Active Reset experiment).
[7]:
class SingleShotProgram(RAveragerProgram):
def initialize(self):
cfg=self.cfg
self.declare_gen(ch=cfg["res_ch"], nqz=1) #Readout
self.declare_gen(ch=cfg["qubit_ch"], nqz=2) #Qubit
for ch in [0,1]: #configure the readout lengths and downconversion frequencies
self.declare_readout(ch=ch, length=cfg["readout_length"],
freq=cfg["f_res"], gen_ch=cfg["res_ch"])
cfg["start"]=0
cfg["step"]=cfg["pi_gain"]
cfg["reps"]=cfg["shots"]
cfg["expts"]=2
self.q_rp=self.ch_page(self.cfg["qubit_ch"]) # get register page for qubit_ch
self.r_gain=self.sreg(cfg["qubit_ch"], "gain") # get frequency register for qubit_ch
f_res=self.freq2reg(cfg["f_res"], gen_ch=cfg["res_ch"], ro_ch=0) # conver f_res to dac register value
f_ge=self.freq2reg(cfg["f_ge"], gen_ch=cfg["qubit_ch"])
# add qubit and readout pulses to respective channels
self.add_gauss(ch=cfg["qubit_ch"], name="qubit", sigma=cfg["sigma"], length=cfg["sigma"]*4)
self.set_pulse_registers(ch=cfg["qubit_ch"], style="arb", freq=f_ge, phase=0, gain=cfg["start"],
waveform="qubit")
self.set_pulse_registers(ch=cfg["res_ch"], style="const", freq=f_res, phase=cfg["res_phase"], gain=cfg["res_gain"],
length=cfg["readout_length"])
self.sync_all(self.us2cycles(500))
def body(self):
self.pulse(ch=self.cfg["qubit_ch"]) #play probe pulse
self.sync_all(self.us2cycles(0.05)) # align channels and wait 50ns
#trigger measurement, play measurement pulse, wait for qubit to relax
self.measure(pulse_ch=self.cfg["res_ch"],
adcs=[0,1],
adc_trig_offset=self.cfg["adc_trig_offset"],
wait=True,
syncdelay=self.us2cycles(self.cfg["relax_delay"]))
def update(self):
self.mathi(self.q_rp, self.r_gain, self.r_gain, '+', self.cfg["step"]) # update frequency list index
def acquire(self,soc, progress=False):
super().acquire(soc, progress=progress)
return self.collect_shots()
def collect_shots(self):
shots_i0=self.di_buf[0].reshape((self.cfg["expts"],self.cfg["reps"]))/self.cfg['readout_length']
shots_q0=self.dq_buf[0].reshape((self.cfg["expts"],self.cfg["reps"]))/self.cfg['readout_length']
shots_i1=self.di_buf[1].reshape((self.cfg["expts"],self.cfg["reps"]))/self.cfg['readout_length']
shots_q1=self.dq_buf[1].reshape((self.cfg["expts"],self.cfg["reps"]))/self.cfg['readout_length']
return shots_i0,shots_q0,shots_i1,shots_q1
def analyze(self, shots_i, shots_q):
plt.subplot(111, xlabel='I', ylabel='Q', title='Single Shot Histogram')
plt.plot(shots_i[0],shots_q[0],'.',label='g')
plt.plot(shots_i[1],shots_q[1],'.',label='e')
plt.legend()
plt.gca().set_aspect('equal', 'datalim')
[8]:
expt_cfg={
"shots":5000, "res_phase":0
}
config={**hw_cfg,**readout_cfg,**qubit_cfg,**expt_cfg} #combine configs
ssp=SingleShotProgram(soccfg, config)
di0, dq0, di1, dq1 = ssp.acquire(soc,progress=True)
fid, threshold, angle = hist(data=[di0[0], dq0[0], di0[1], dq0[1]], plot=True, ran=600)
#print('Optimal fidelity after rotation = %.3f' % fid)
readout_cfg["res_phase"]=soccfg.deg2reg(-angle*180/pi, gen_ch=5)
readout_cfg["threshold"]=round(threshold)
Pulse Probe (qubit) spectroscopy
Measures the qubit frequency f_ge. We store this parameter here: qubit_cfg[“f_ge”] .
This program uses the RAveragerProgram class, which allows you to sweep a parameter directly on the processor rather than in a Python loop as in the above resonator spectroscopy example. Because the whole sweep is done on the processor there is less downtime (especially for fast experiments).
[9]:
class PulseProbeSpectroscopyProgram(RAveragerProgram):
def initialize(self):
cfg=self.cfg
self.declare_gen(ch=cfg["res_ch"], nqz=1) #Readout
self.declare_gen(ch=cfg["qubit_ch"], nqz=2) #Qubit
for ch in [0,1]: #configure the readout lengths and downconversion frequencies
self.declare_readout(ch=ch, length=cfg["readout_length"],
freq=cfg["f_res"], gen_ch=cfg["res_ch"])
self.q_rp=self.ch_page(self.cfg["qubit_ch"]) # get register page for qubit_ch
self.r_freq=self.sreg(cfg["qubit_ch"], "freq") # get frequency register for qubit_ch
f_res=self.freq2reg(cfg["f_res"], gen_ch=cfg["res_ch"], ro_ch=0) # conver f_res to dac register value
self.f_start =self.freq2reg(cfg["start"], gen_ch=cfg["qubit_ch"]) # get start/step frequencies
self.f_step =self.freq2reg(cfg["step"], gen_ch=cfg["qubit_ch"])
# add qubit and readout pulses to respective channels
self.set_pulse_registers(ch=cfg["qubit_ch"], style="const", freq=self.f_start, phase=0, gain=cfg["qubit_gain"],
length=cfg["probe_length"])
self.set_pulse_registers(ch=cfg["res_ch"], style="const", freq=f_res, phase=cfg["res_phase"], gain=cfg["res_gain"],
length=cfg["readout_length"])
self.sync_all(self.us2cycles(1))
def body(self):
self.pulse(ch=self.cfg["qubit_ch"]) #play probe pulse
self.sync_all(self.us2cycles(0.05)) # align channels and wait 50ns
#trigger measurement, play measurement pulse, wait for qubit to relax
self.measure(pulse_ch=self.cfg["res_ch"],
adcs=[0,1],
adc_trig_offset=self.cfg["adc_trig_offset"],
wait=True,
syncdelay=self.us2cycles(self.cfg["relax_delay"]))
def update(self):
self.mathi(self.q_rp, self.r_freq, self.r_freq, '+', self.f_step) # update frequency list index
[10]:
expt_cfg={"start":4741, "step":0.01, "expts":400, "reps": 20,"rounds":50,
"probe_length":soccfg.us2cycles(2.0, gen_ch=2), "qubit_gain":10
}
config={**hw_cfg,**readout_cfg,**qubit_cfg,**expt_cfg} #combine configs
qspec=PulseProbeSpectroscopyProgram(soccfg, config)
expt_pts, avgi, avgq = qspec.acquire(soc, threshold=readout_cfg["threshold"],progress=True)
subplot(111,title="Qubit Spectroscopy", xlabel="Qubit Frequency (GHz)", ylabel="Qubit Population")
plot(expt_pts, avgi[0][0],'o-')
axvline(qubit_cfg["f_ge"]);

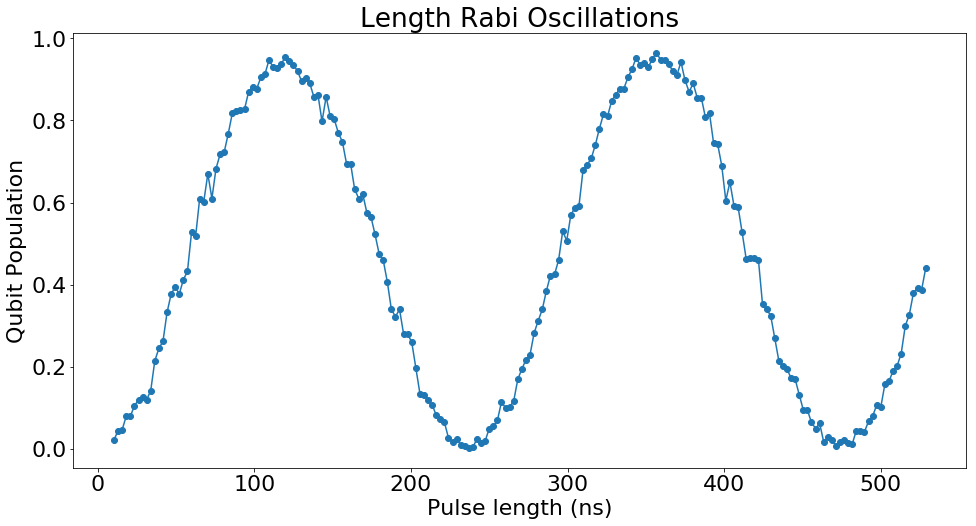

Length Rabi
Measures Rabi oscillations by sweeping over the duration of the qubit drive pulse. This is a preliminary measurement to prove that we see Rabi oscillations. This measurement is followed up by the Amplitude Rabi experiment below.
Note that we could speed up this measurement by using an RAveragerProgram (tProcessor loop over duration) instead of a AveragerProgram with a Python loop. We would need to update two registers, one for the pulse length and one for the sync after playing the pulse (sync_all automatically accounts for the pulse length if it’s a fixed value, but that doesn’t work if the pulse length is being modified by the tProcessor).
[11]:
class LengthRabiProgram(AveragerProgram):
def initialize(self):
cfg=self.cfg
self.declare_gen(ch=cfg["res_ch"], nqz=1) #Readout
self.declare_gen(ch=cfg["qubit_ch"], nqz=2) #Qubit
for ch in [0,1]: #configure the readout lengths and downconversion frequencies
self.declare_readout(ch=ch, length=cfg["readout_length"],
freq=cfg["f_res"], gen_ch=cfg["res_ch"])
f_res=self.freq2reg(cfg["f_res"], gen_ch=cfg["res_ch"], ro_ch=0) # conver f_res to dac register value
f_ge=self.freq2reg(cfg["f_ge"], gen_ch=cfg["qubit_ch"])
# add qubit and readout pulses to respective channels
self.set_pulse_registers(ch=cfg["qubit_ch"], style="const", freq=f_ge, phase=0, gain=cfg["qubit_gain"],
length=cfg["pulse_length"])
self.set_pulse_registers(ch=cfg["res_ch"], style="const", freq=f_res, phase=cfg["res_phase"], gain=cfg["res_gain"],
length=cfg["readout_length"])
self.synci(200)
def body(self):
cfg=self.cfg
self.pulse(ch=cfg["qubit_ch"]) #play probe pulse
self.sync_all(self.us2cycles(0.05)) # align channels and wait 50ns
#trigger measurement, play measurement pulse, wait for qubit to relax
self.measure(pulse_ch=cfg["res_ch"],
adcs=[0,1],
wait=True,
syncdelay=self.us2cycles(cfg["relax_delay"]))
[12]:
expt_cfg={
"qubit_gain":2000,
"start":4, "step":1, "expts":200, "reps": 400,
}
config={**hw_cfg,**readout_cfg,**qubit_cfg,**expt_cfg} #combine configs
expt_pts=[expt_cfg["start"] + ii*expt_cfg["step"] for ii in range(expt_cfg["expts"])]
results=[]
for length in tqdm(expt_pts):
config["pulse_length"]=length
rabi=LengthRabiProgram(soccfg, config)
avgi,avgq = rabi.acquire(soc, threshold=readout_cfg["threshold"], progress=False)
results.append(avgi[0][0])
subplot(111, title="Length Rabi Oscillations", xlabel="Pulse length (ns)", ylabel="Qubit Population")
plot(soccfg.cycles2us(np.array(expt_pts), gen_ch=2)*1000,results,'o-');

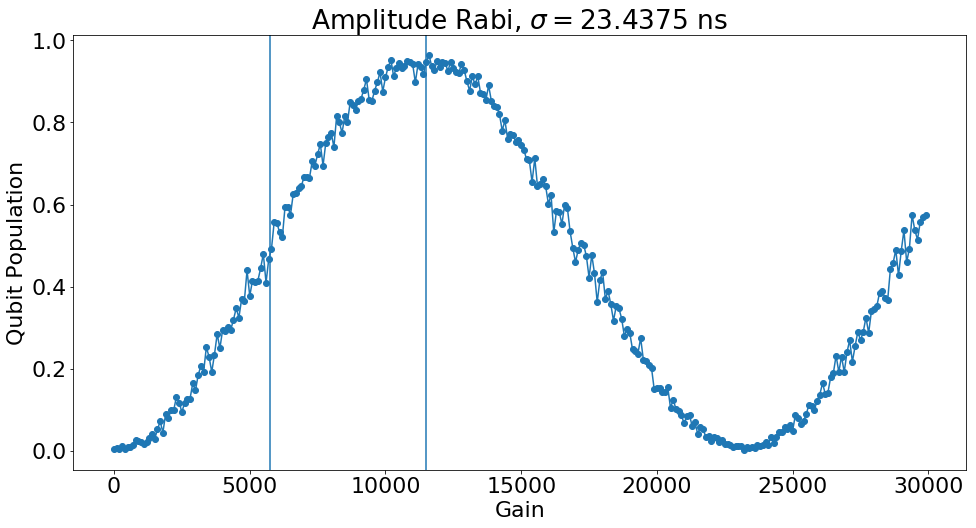

Amplitude Rabi
Measures Rabi oscillations by sweeping over the amplitude of the qubit drive pulse, which is an \(\approx\) 100 ns (\(\sigma\) \(\approx\) 25 ns) long Gaussian pulse. We measure the \(\pi\) and \(\pi\)/2 pulse amplitudes which are used in subsequent experiments to control the qubit. We store these parameters here: qubit_cfg[“pi_gain”] and qubit_cfg[“pi2_gain”]
[13]:
class AmplitudeRabiProgram(RAveragerProgram):
def initialize(self):
cfg=self.cfg
self.q_rp=self.ch_page(self.cfg["qubit_ch"]) # get register page for qubit_ch
self.r_gain=self.sreg(cfg["qubit_ch"], "gain") # get gain register for qubit_ch
self.declare_gen(ch=cfg["res_ch"], nqz=1) #Readout
self.declare_gen(ch=cfg["qubit_ch"], nqz=2) #Qubit
for ch in [0,1]: #configure the readout lengths and downconversion frequencies
self.declare_readout(ch=ch, length=cfg["readout_length"],
freq=cfg["f_res"], gen_ch=cfg["res_ch"])
f_res=self.freq2reg(cfg["f_res"], gen_ch=cfg["res_ch"], ro_ch=0) # conver f_res to dac register value
f_ge=self.freq2reg(cfg["f_ge"], gen_ch=cfg["qubit_ch"])
# add qubit and readout pulses to respective channels
self.add_gauss(ch=cfg["qubit_ch"], name="qubit", sigma=cfg["sigma"], length=cfg["sigma"]*4)
self.set_pulse_registers(ch=cfg["qubit_ch"], style="arb", freq=f_ge, phase=self.deg2reg(90, gen_ch=cfg["qubit_ch"]), gain=cfg["start"],
waveform="qubit")
self.set_pulse_registers(ch=cfg["res_ch"], style="const", freq=f_res, phase=cfg["res_phase"], gain=cfg["res_gain"],
length=cfg["readout_length"])
self.sync_all(self.us2cycles(500))
def body(self):
self.pulse(ch=self.cfg["qubit_ch"]) #play probe pulse
self.sync_all(self.us2cycles(0.05)) # align channels and wait 50ns
#trigger measurement, play measurement pulse, wait for qubit to relax
self.measure(pulse_ch=self.cfg["res_ch"],
adcs=[0,1],
adc_trig_offset=self.cfg["adc_trig_offset"],
wait=True,
syncdelay=self.us2cycles(self.cfg["relax_delay"]))
def update(self):
self.mathi(self.q_rp, self.r_gain, self.r_gain, '+', self.cfg["step"]) # update gain of the Gaussian pi pulse
[14]:
expt_cfg={
"start":0, "step":100, "expts":300, "reps": 400
}
config={**hw_cfg,**readout_cfg,**qubit_cfg,**expt_cfg} #combine configs
rabi=AmplitudeRabiProgram(soccfg, config)
x_pts, avgi, avgq = rabi.acquire(soc,threshold=readout_cfg["threshold"],progress=True)
subplot(111, title= f"Amplitude Rabi, $\sigma={soccfg.cycles2us(config['sigma'], gen_ch=2)*1000}$ ns", xlabel="Gain", ylabel="Qubit Population" )
plot(x_pts,avgi[0][0],'o-')
axvline(qubit_cfg["pi_gain"])
axvline(qubit_cfg["pi2_gain"]);

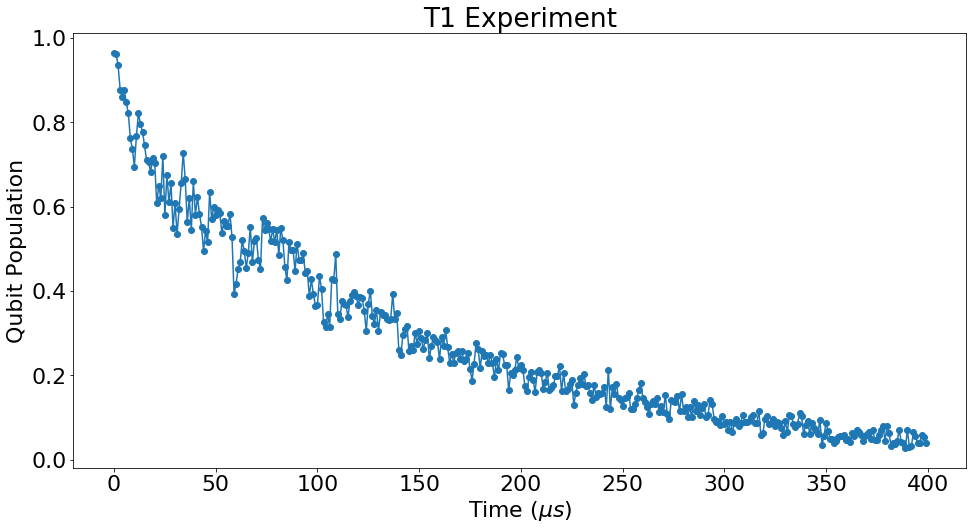

T1
Measures the qubit T1 characteristic decay time by preparing the qubit in its excited state with a \(\pi\) pulse followed by a variable delay (\(\tau\)) before measuring the qubit’s state. This exponential decay curve can be fitted in post-processing to obtain the qubit T1 time.
[15]:
class T1Program(RAveragerProgram):
def initialize(self):
cfg=self.cfg
self.q_rp=self.ch_page(cfg["qubit_ch"]) # get register page for qubit_ch
self.r_wait = 3
self.regwi(self.q_rp, self.r_wait, cfg["start"])
self.declare_gen(ch=cfg["res_ch"], nqz=1) #Readout
self.declare_gen(ch=cfg["qubit_ch"], nqz=2) #Qubit
for ch in [0,1]: #configure the readout lengths and downconversion frequencies
self.declare_readout(ch=ch, length=cfg["readout_length"],
freq=cfg["f_res"], gen_ch=cfg["res_ch"])
f_res=self.freq2reg(cfg["f_res"], gen_ch=cfg["res_ch"], ro_ch=0) # conver f_res to dac register value
f_ge=self.freq2reg(cfg["f_ge"], gen_ch=cfg["qubit_ch"])
# add qubit and readout pulses to respective channels
self.add_gauss(ch=cfg["qubit_ch"], name="qubit", sigma=cfg["sigma"], length=cfg["sigma"]*4)
self.set_pulse_registers(ch=cfg["qubit_ch"], style="arb", freq=f_ge, phase=0, gain=cfg["pi_gain"],
waveform="qubit")
self.set_pulse_registers(ch=cfg["res_ch"], style="const", freq=f_res, phase=cfg["res_phase"], gain=cfg["res_gain"],
length=cfg["readout_length"])
self.sync_all(self.us2cycles(500))
def body(self):
self.pulse(ch=self.cfg["qubit_ch"]) #play probe pulse
self.sync_all()
self.sync(self.q_rp,self.r_wait)
#trigger measurement, play measurement pulse, wait for qubit to relax
self.measure(pulse_ch=self.cfg["res_ch"],
adcs=[0,1],
adc_trig_offset=self.cfg["adc_trig_offset"],
wait=True,
syncdelay=self.us2cycles(self.cfg["relax_delay"]))
def update(self):
self.mathi(self.q_rp, self.r_wait, self.r_wait, '+', self.us2cycles(self.cfg["step"])) # update frequency list index
[16]:
expt_cfg={ "start":0, "step":1, "expts":400, "reps": 400,
"relax_delay":750
}
config={**hw_cfg,**readout_cfg,**qubit_cfg,**expt_cfg} #combine configs
t1p=T1Program(soccfg, config)
x_pts, avgi, avgq = t1p.acquire(soc, threshold=readout_cfg["threshold"], progress=True)
subplot(111, title="T1 Experiment", xlabel=f"Time ($\mu s$)", ylabel="Qubit Population")
plot(x_pts, avgi[0][0],'o-');

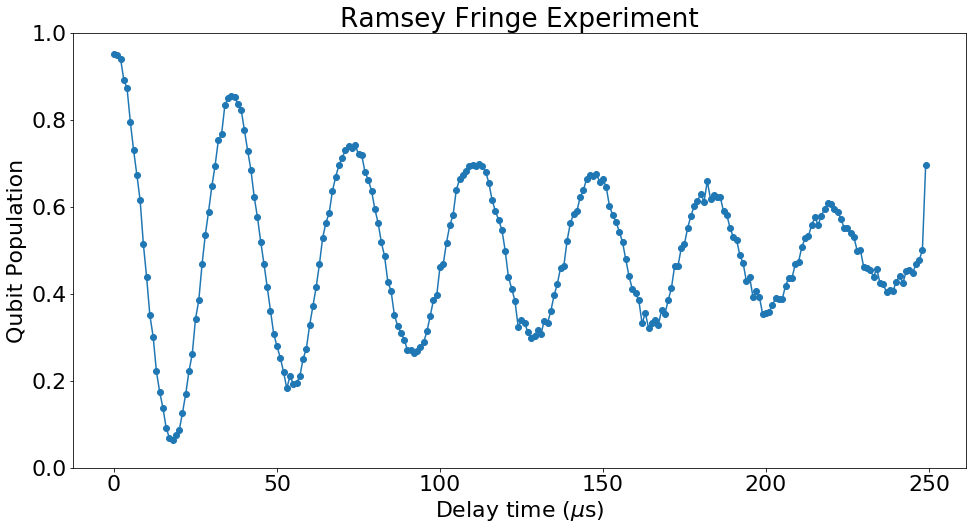

Ramsey Fringe Experiment
Measures the qubit T2 Ramsey characteristic decay time by preparing the qubit in a superposition state with a \(\frac{\pi}{2}\) pulse followed by a variable delay (\(\tau\)) before applying another \(\frac{\pi}{2}\) pulse with a phase advanced by \(\Delta \phi = \omega * \tau\), where \(\omega\) is the Ramsey frequency. This exponential decay envelope can be fitted in post-processing to obtain the qubit T2 Ramsey time.
[17]:
class RamseyProgram(RAveragerProgram):
def initialize(self):
cfg=self.cfg
self.q_rp=self.ch_page(cfg["qubit_ch"]) # get register page for qubit_ch
self.r_wait = 3
self.r_phase2 = 4
self.r_phase=self.sreg(cfg["qubit_ch"], "phase")
self.regwi(self.q_rp, self.r_wait, cfg["start"])
self.regwi(self.q_rp, self.r_phase2, 0)
self.declare_gen(ch=cfg["res_ch"], nqz=1) #Readout
self.declare_gen(ch=cfg["qubit_ch"], nqz=2) #Qubit
for ch in [0,1]: #configure the readout lengths and downconversion frequencies
self.declare_readout(ch=ch, length=cfg["readout_length"],
freq=cfg["f_res"], gen_ch=cfg["res_ch"])
f_res=self.freq2reg(cfg["f_res"], gen_ch=cfg["res_ch"], ro_ch=0) # conver f_res to dac register value
f_ge=self.freq2reg(cfg["f_ge"], gen_ch=cfg["qubit_ch"])
# add qubit and readout pulses to respective channels
self.add_gauss(ch=cfg["qubit_ch"], name="qubit", sigma=cfg["sigma"], length=cfg["sigma"]*4)
self.set_pulse_registers(ch=cfg["qubit_ch"], style="arb", freq=f_ge, phase=0, gain=cfg["pi2_gain"],
waveform="qubit")
self.set_pulse_registers(ch=cfg["res_ch"], style="const", freq=f_res, phase=cfg["res_phase"], gain=cfg["res_gain"],
length=cfg["readout_length"])
self.sync_all(self.us2cycles(0.2))
def body(self):
self.regwi(self.q_rp, self.r_phase, 0)
self.pulse(ch=self.cfg["qubit_ch"]) #play probe pulse
self.mathi(self.q_rp, self.r_phase, self.r_phase2,"+",0)
self.sync_all()
self.sync(self.q_rp,self.r_wait)
self.pulse(ch=self.cfg["qubit_ch"]) #play probe pulse
self.sync_all(self.us2cycles(0.05))
#trigger measurement, play measurement pulse, wait for qubit to relax
self.measure(pulse_ch=self.cfg["res_ch"],
adcs=[0,1],
adc_trig_offset=self.cfg["adc_trig_offset"],
wait=True,
syncdelay=self.us2cycles(self.cfg["relax_delay"]))
def update(self):
self.mathi(self.q_rp, self.r_wait, self.r_wait, '+', self.cfg["step"]) # update the time between two π/2 pulses
self.mathi(self.q_rp, self.r_phase2, self.r_phase2, '+', self.cfg["phase_step"]) # advance the phase of the LO for the second π/2 pulse
[18]:
expt_cfg={"start":soccfg.us2cycles(0.0), "step":soccfg.us2cycles(1), "phase_step": soccfg.deg2reg(2*360/100, gen_ch=2), "expts":250,
"reps": 10, "rounds": 200
}
config={**hw_cfg,**readout_cfg,**qubit_cfg,**expt_cfg} #combine configs
t2p=RamseyProgram(soccfg, config)
x_pts, avgi, avgq= t2p.acquire(soc, threshold=readout_cfg["threshold"],progress=True)
subplot(111, title="Ramsey Fringe Experiment", xlabel="Delay time ($\mu$s)", ylabel="Qubit Population")
plot(soccfg.cycles2us(x_pts),avgi[0][0],'o-')
ylim(0,1);
Active reset
This experiment demonstrates active reset with the QICK.
The protocol is as follows: there is an overall loop over the qubit drive pulse amplitude (as in the amplitude Rabi measurement above). During each loop iteration, several measurements occur. First, an amplitude rabi measurement is done (labeled “pre-reset” in the below plot). If that measurement doesn’t exceed a threshold (meaning that the qubit is in its ground state after the qubit drive pulse was applied) nothing is done. But if the measurement exceeds the threshold (meaning that the the qubit is in its excited state after the qubit drive pulse was applied) a \(\pi\) pulse is applied to the qubit (hopefully bringing it back to the gnd state). Finally, a second measurement is done (labeled “post-reset” in the below plot).
Note that to run this experiment you must first successfully calibrate the single-shot readout threshold using the Single Shot experiment above.
[19]:
class ActiveResetProgram(RAveragerProgram):
def initialize(self):
cfg=self.cfg
self.q_rp=self.ch_page(self.cfg["qubit_ch"]) # get register page for qubit_ch
self.r_gain=self.sreg(cfg["qubit_ch"], "gain") # get frequency register for qubit_ch
self.r_gain2=4
self.regwi(self.q_rp, self.r_gain2, cfg["start"])
self.r_thresh = 6
self.regwi(0,self.r_thresh,config["threshold"]*cfg["readout_length"])
self.declare_gen(ch=cfg["res_ch"], nqz=1) #Readout
self.declare_gen(ch=cfg["qubit_ch"], nqz=2) #Qubit
for ch in [0,1]: #configure the readout lengths and downconversion frequencies
self.declare_readout(ch=ch, length=cfg["readout_length"],
freq=cfg["f_res"], gen_ch=cfg["res_ch"])
f_res=self.freq2reg(cfg["f_res"], gen_ch=cfg["res_ch"], ro_ch=0) # conver f_res to dac register value
f_ge=self.freq2reg(cfg["f_ge"], gen_ch=cfg["qubit_ch"])
# add qubit and readout pulses to respective channels
self.add_gauss(ch=cfg["qubit_ch"], name="qubit", sigma=cfg["sigma"], length=cfg["sigma"]*4)
self.set_pulse_registers(ch=cfg["qubit_ch"], style="arb", freq=f_ge, phase=0, gain=cfg["start"],
waveform="qubit")
self.set_pulse_registers(ch=cfg["res_ch"], style="const", freq=f_res, phase=cfg["res_phase"], gain=cfg["res_gain"],
length=cfg["readout_length"])
self.sync_all(self.us2cycles(500))
def body(self):
self.mathi(self.q_rp,self.r_gain,self.r_gain2,"+",0)
self.pulse(ch=self.cfg["qubit_ch"]) #play probe pulse
self.sync_all(self.us2cycles(0.05))
self.measure(pulse_ch=self.cfg["res_ch"],
adcs=[0,1],
adc_trig_offset=self.cfg["adc_trig_offset"])
self.wait_all(200) # pause until 200 clocks past the end of the readout window
self.read(0,0,"lower",2)
self.read(0,0,"upper",3)
self.condj(0,2,'<',self.r_thresh,'after_reset')
self.regwi(self.q_rp, self.r_gain, self.cfg["pi_gain"]) #pi pulse qubit
self.pulse(ch=self.cfg["qubit_ch"], t=0)
self.label('after_reset')
self.sync_all(self.us2cycles(1)) # align channels and wait 50ns
#trigger measurement, play measurement pulse, wait for qubit to relax
self.measure(pulse_ch=self.cfg["res_ch"],
adcs=[0,1],
adc_trig_offset=self.cfg["adc_trig_offset"],
wait=True,
syncdelay=self.us2cycles(self.cfg["relax_delay"]))
def update(self):
self.mathi(self.q_rp, self.r_gain2, self.r_gain2, '+', self.cfg["step"]) # update frequency list index
[20]:
expt_cfg={
"start":0, "step":100, "expts":300, "reps": 400
}
config={**hw_cfg,**readout_cfg,**qubit_cfg,**expt_cfg} #combine configs
areset=ActiveResetProgram(soccfg, config)
expt_pts,avgi,avgq = areset.acquire(soc, threshold=readout_cfg["threshold"], progress=True)
subplot(111,title="Active Reset", xlabel="Pulse Amplitude", ylabel="Qubit Population")
plot(expt_pts,avgi[0][0],'o-', label="pre-reset")
plot(expt_pts,avgi[0][1], 'o-', label="post-reset")
legend();
