01 - Basic Sequencing with tProc v2

Objective: Learn how to define pulses, create a sequence, acquire data, and understand the basic structure of a tProc v2 program.

1. Setup

# Standard imports
%matplotlib inline
import matplotlib.pyplot as plt
import numpy as np
import logging

from qick import *
from qick.asm_v2 import AveragerProgramV2

# Setup logging
logging.basicConfig(level=logging.INFO, format='%(levelname)-8s [%(filename)s:%(lineno)d] %(message)s')
logging.getLogger("qick_processor").setLevel(logging.WARNING)

# Connect to the board (adjust the path to your firmware)
BITSTREAM_PATH = 'qick_216.bit'#'/path/to/your/firmware.bit'  # <--- CHANGE THIS
soc = QickSoc(BITSTREAM_PATH)
soccfg = soc

# Define hardware channels (adjust based on your firmware)
GEN_CH = 0      # Generator channel 0
RO_CH = 0       # Readout channel 0

2. Your First Program: The Structure

Every tProc v2 program follows this pattern:

class MyFirstProgram(AveragerProgramV2):
    def _initialize(self, cfg):
        """Setup: Called once when the program is compiled."""
        # 1. Declare hardware resources
        # 2. Define envelopes and pulses
        # 3. Configure readout
        pass

    def _body(self, cfg):
        """Sequence: Called for each repetition (shot)."""
        # 1. Play pulses
        # 2. Trigger readout
        pass

The key distinction:

• ``_initialize()`` runs during compilation (Python side, once)

• ``_body()`` runs during execution (tProc side, many times)

3. A Simple Single-Pulse Program

Let’s create a program that plays a single constant pulse and measures it.

class SinglePulseProgram(AveragerProgramV2):
    def _initialize(self, cfg):
        # Declare the generator and readout channels
        self.declare_gen(ch=cfg['gen_ch'], nqz=1)  # nqz=1 means no frequency folding
        self.declare_readout(ch=cfg['ro_ch'], length=cfg['ro_len'])

        # Define a constant pulse (no envelope shaping)
        self.add_pulse(
            ch=cfg['gen_ch'],
            name="my_pulse",
            style="const",           # Constant amplitude
            freq=cfg['freq'],        # Frequency in MHz
            ro_ch=cfg['ro_ch'],      # Round freq to the readout's grid too (frequency matching)
            length=cfg['pulse_len'], # Duration in microseconds
            phase=cfg['phase'],      # Phase in degrees
            gain=cfg['gain']         # Amplitude (0 to 1)
        )

        # Configure the readout
        self.add_readoutconfig(
            ch=cfg['ro_ch'],
            name="my_ro",
            freq=cfg['freq'],
            gen_ch=cfg['gen_ch']
        )
        self.send_readoutconfig(ch=cfg['ro_ch'], name="my_ro", t=0)

    def _body(self, cfg):
        # Play the pulse at time t=0
        self.pulse(ch=cfg['gen_ch'], name="my_pulse", t=0)
        # Trigger the readout
        self.trigger(ros=[cfg['ro_ch']], pins=[0], t=cfg['trig_time'])

# Configure the experiment
config = {
    'gen_ch': GEN_CH,
    'ro_ch': RO_CH,
    'freq': 500.0,          # MHz
    'pulse_len': 0.1,       # microseconds
    'phase': 0,             # degrees
    'gain': 1.0,            # full amplitude
    'trig_time': 0.2,       # microseconds (when to start readout)
    'ro_len': 0.5           # microseconds (readout duration)
}

# Create and run the program
prog = SinglePulseProgram(soccfg, reps=1, final_delay=0.5, cfg=config)

# Acquire data (decimated mode gives IQ traces vs time)
iq_data = prog.acquire_decimated(soc, rounds=10)  # 10 averages
time_axis = prog.get_time_axis(ro_index=0)

# Plot the results
plt.figure(figsize=(10, 5))
plt.plot(time_axis, iq_data[0][:,0], label='I (In-phase)')
plt.plot(time_axis, iq_data[0][:,1], label='Q (Quadrature)')
plt.plot(time_axis, np.abs(iq_data[0].dot([1,1j])), label='Magnitude')
plt.legend()
plt.xlabel('Time (µs)')
plt.ylabel('Amplitude (a.u.)')
plt.title('Single Pulse Measurement')
plt.grid(True)
plt.show()

Explanation of the cell:

• declare_gen() and declare_readout() tell the tProc which hardware resources we’ll use

• add_pulse() defines a pulse with its parameters. A constant pulse (style="const") has flat amplitude.

• ro_ch in add_pulse() and gen_ch in add_readoutconfig() frequency-match the generator and the readout, so both use exactly the same frequency. Without them the phase of the measured I/Q slides over time and changes from run to run; see How to ensure frequency matching.

• In _body(), pulse() schedules the pulse, and trigger() starts the readout acquisition

• acquire_decimated() returns averaged IQ data. The rounds parameter controls how many times the entire experiment is repeated for averaging.

4. Multiple Pulses in One Sequence

You can define many pulses in _initialize() and play them in any order.

class MultiPulseProgram(AveragerProgramV2):
    def _initialize(self, cfg):
        self.declare_gen(ch=cfg['gen_ch'], nqz=1)
        self.declare_readout(ch=cfg['ro_ch'], length=cfg['ro_len'])

        # Define a Gaussian envelope
        ramp_len = 0.2
        self.add_gauss(
            ch=cfg['gen_ch'],
            name="gauss_env",
            sigma=ramp_len/10,
            length=ramp_len,
            even_length=True
        )

        # Define different pulse types
        # Flat-top pulse (Gaussian rise/fall, constant middle)
        self.add_pulse(
            ch=cfg['gen_ch'], name="p_flattop",
            style="flat_top", envelope="gauss_env",
            freq=cfg['freq'], ro_ch=cfg['ro_ch'], length=0.1, phase=0, gain=1.0
        )

        # Gaussian pulse
        self.add_pulse(
            ch=cfg['gen_ch'], name="p_gauss",
            style="arb", envelope="gauss_env",
            freq=cfg['freq'], ro_ch=cfg['ro_ch'], phase=0, gain=1.0
        )

        # Constant pulse
        self.add_pulse(
            ch=cfg['gen_ch'], name="p_const",
            style="const",
            freq=cfg['freq'], ro_ch=cfg['ro_ch'], length=0.15, phase=0, gain=1.0
        )

        # Flat-top pulse with 90-degree phase
        self.add_pulse(
            ch=cfg['gen_ch'], name="p_flattop_90",
            style="flat_top", envelope="gauss_env",
            freq=cfg['freq'], ro_ch=cfg['ro_ch'], length=0.1, phase=90, gain=1.0
        )

        self.add_readoutconfig(ch=cfg['ro_ch'], name="my_ro", freq=cfg['freq'], gen_ch=cfg['gen_ch'])
        self.send_readoutconfig(ch=cfg['ro_ch'], name="my_ro", t=0)

    def _body(self, cfg):
        self.trigger(ros=[cfg['ro_ch']], pins=[0], t=cfg['trig_time'], ddr4=True)

        # Sequence of pulses at different times (microseconds)
        self.pulse(ch=cfg['gen_ch'], name="p_flattop", t=0)
        self.pulse(ch=cfg['gen_ch'], name="p_gauss", t=0.4)
        self.pulse(ch=cfg['gen_ch'], name="p_const", t=0.8)
        self.pulse(ch=cfg['gen_ch'], name="p_flattop_90", t=1.2)
        self.pulse(ch=cfg['gen_ch'], name="p_gauss", t=1.6)

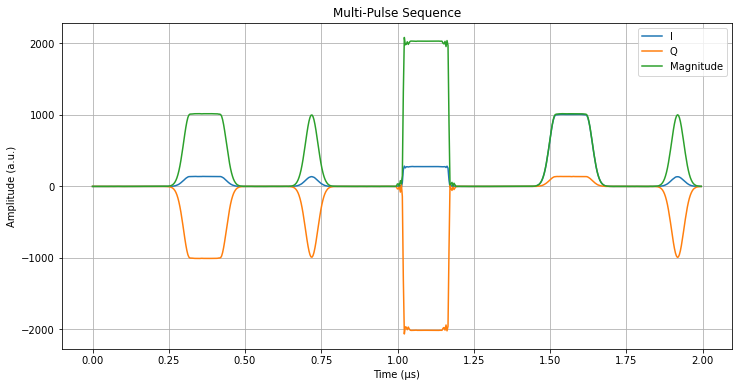

# Run the multi-pulse sequence
config['ro_len'] = 2.0  # Longer readout to capture all pulses
prog = MultiPulseProgram(soccfg, reps=1, final_delay=0.5, cfg=config)
iq_data = prog.acquire_decimated(soc, rounds=10)
time_axis = prog.get_time_axis(ro_index=0)

plt.figure(figsize=(12, 6))
plt.plot(time_axis, iq_data[0][:,0], label='I')
plt.plot(time_axis, iq_data[0][:,1], label='Q')
plt.plot(time_axis, np.abs(iq_data[0].dot([1,1j])), label='Magnitude')
plt.legend()
plt.xlabel('Time (µs)')
plt.ylabel('Amplitude (a.u.)')
plt.title('Multi-Pulse Sequence')
plt.grid(True)
plt.show()

Key observations from this example:

• Once a pulse is defined, it can be reused multiple times (p_gauss appears twice)

• Different pulse styles serve different purposes: const for square pulses, arb for shaped pulses, flat_top for shaped pulses with a constant top

• The even_length=True parameter ensures the envelope has an even number of samples, which is required for some operations

5. Inspecting Your Program

You can print the program to see what the tProc will execute:

print(prog)

macros:
        WriteReg(dst='s_core_w1', src=0)
        ConfigReadout(ch=0, name='my_ro', t=0, tag=None, t_params={'t': <qick.asm_v2.QickParam object at 0xffff6e06a500>}, t_regs={'t': 0})
        Delay(t=1.0, auto=True, gens=True, ros=True, tag=None, t_params={'t': <qick.asm_v2.QickParam object at 0xffff6e06a590>}, t_regs={'t': 430})
        OpenLoop(n=1, name='reps')
        Trigger(ros=[0], tts=[], pins=[0], t=0.2, width=0.023251488095238096, ddr4=True, mr=False, tag=None, t_params={'t': <qick.asm_v2.QickParam object at 0xffff6e06a770>, 'width': <qick.asm_v2.QickParam object at 0xffff6e06a560>}, t_regs={'t': 86, 'width': 10}, outdict=defaultdict(<class 'int'>, {}), trigset={0, 9, 10})
        Pulse(ch=0, name='p_flattop', t=0, tag=None, t_params={'t': <qick.asm_v2.QickParam object at 0xffff6e06a650>}, t_regs={'t': 0})
        Pulse(ch=0, name='p_gauss', t=0.4, tag=None, t_params={'t': <qick.asm_v2.QickParam object at 0xffff6e06a800>}, t_regs={'t': 172})
        Pulse(ch=0, name='p_const', t=0.8, tag=None, t_params={'t': <qick.asm_v2.QickParam object at 0xffff6e06a6e0>}, t_regs={'t': 344})
        Pulse(ch=0, name='p_flattop_90', t=1.2, tag=None, t_params={'t': <qick.asm_v2.QickParam object at 0xffff6e06a7d0>}, t_regs={'t': 516})
        Pulse(ch=0, name='p_gauss', t=1.6, tag=None, t_params={'t': <qick.asm_v2.QickParam object at 0xffff6e06a8c0>}, t_regs={'t': 688})
        Wait(t=0, auto=True, gens=False, ros=True, tag=None, no_warn=True, t_params={'t': <qick.asm_v2.QickParam object at 0xffff6e06a920>}, t_regs={'t': 946})
        Delay(t=0.5, auto=True, gens=True, ros=True, tag=None, t_params={'t': <qick.asm_v2.QickParam object at 0xffff6e06a9e0>}, t_regs={'t': 1161})
        IncReg(dst='s_core_w1', src=1)
        CloseLoop()
        End()
registers:
        reps: QickRegisterV2(addr=0, init=None)
pulses:
        p_flattop: QickPulse(waveforms=[Waveform(name='p_flattop_w0', freq=QickRawParam(par='freq', start=224054700, spans={}, quantize=10, steps={}), phase=QickRawParam(par='phase', start=0, spans={}, quantize=1, steps={}), env=0, gain=QickRawParam(par='gain', start=32766, spans={}, quantize=2, steps={}), length=60, conf=8), Waveform(name='p_flattop_w1', freq=QickRawParam(par='freq', start=224054700, spans={}, quantize=10, steps={}), phase=QickRawParam(par='phase', start=0, spans={}, quantize=1, steps={}), env=0, gain=QickRawParam(par='gain', start=16383, spans={}, quantize=1, steps={}), length=QickRawParam(par='length', start=60, spans={}, quantize=1, steps={}), conf=9), Waveform(name='p_flattop_w2', freq=QickRawParam(par='freq', start=224054700, spans={}, quantize=10, steps={}), phase=QickRawParam(par='phase', start=0, spans={}, quantize=1, steps={}), env=60, gain=QickRawParam(par='gain', start=32766, spans={}, quantize=2, steps={}), length=60, conf=8)])
        p_gauss: QickPulse(waveforms=[Waveform(name='p_gauss_w0', freq=QickRawParam(par='freq', start=224054700, spans={}, quantize=10, steps={}), phase=QickRawParam(par='phase', start=0, spans={}, quantize=1, steps={}), env=0, gain=QickRawParam(par='gain', start=32766, spans={}, quantize=1, steps={}), length=120, conf=8)])
        p_const: QickPulse(waveforms=[Waveform(name='p_const_w0', freq=QickRawParam(par='freq', start=224054700, spans={}, quantize=10, steps={}), phase=QickRawParam(par='phase', start=0, spans={}, quantize=1, steps={}), env=0, gain=QickRawParam(par='gain', start=32766, spans={}, quantize=1, steps={}), length=QickRawParam(par='length', start=90, spans={}, quantize=1, steps={}), conf=9)])
        p_flattop_90: QickPulse(waveforms=[Waveform(name='p_flattop_90_w0', freq=QickRawParam(par='freq', start=224054700, spans={}, quantize=10, steps={}), phase=QickRawParam(par='phase', start=1073741824, spans={}, quantize=1, steps={}), env=0, gain=QickRawParam(par='gain', start=32766, spans={}, quantize=2, steps={}), length=60, conf=8), Waveform(name='p_flattop_90_w1', freq=QickRawParam(par='freq', start=224054700, spans={}, quantize=10, steps={}), phase=QickRawParam(par='phase', start=1073741824, spans={}, quantize=1, steps={}), env=0, gain=QickRawParam(par='gain', start=16383, spans={}, quantize=1, steps={}), length=QickRawParam(par='length', start=60, spans={}, quantize=1, steps={}), conf=9), Waveform(name='p_flattop_90_w2', freq=QickRawParam(par='freq', start=224054700, spans={}, quantize=10, steps={}), phase=QickRawParam(par='phase', start=1073741824, spans={}, quantize=1, steps={}), env=60, gain=QickRawParam(par='gain', start=32766, spans={}, quantize=2, steps={}), length=60, conf=8)])
        my_ro: QickPulse(waveforms=[Waveform(name='my_ro_w0', freq=QickRawParam(par='freq', start=-873813330, spans={}, quantize=-39, steps={}), phase=0, env=0, gain=0, length=3, conf=264)])
expanded ASM:
             NOP
             REG_WR s12 imm #0
             WPORT_WR p4 wmem [&8] @0
             TIME #430 inc_ref
             REG_WR r0 imm #0
        reps:
             TRIG p0 set @86
             TRIG p9 set @86
             TRIG p10 set @86
             TRIG p0 clr @96
             TRIG p9 clr @96
             TRIG p10 clr @96
             WPORT_WR p0 wmem [&0] @0
             WPORT_WR p0 wmem [&1] @0
             WPORT_WR p0 wmem [&2] @0
             WPORT_WR p0 wmem [&3] @172
             WPORT_WR p0 wmem [&4] @344
             WPORT_WR p0 wmem [&5] @516
             WPORT_WR p0 wmem [&6] @516
             WPORT_WR p0 wmem [&7] @516
             WPORT_WR p0 wmem [&3] @688
             REG_WR s15 label SKIP
             WAIT [s15] @946 time
             TIME #1161 inc_ref
             REG_WR s12 op -op(s12 + #1)
             REG_WR s15 label reps
             TEST -op(r0 - #0)
             JUMP [s15] -if(NZ) -wr(r0 op) -op(r0 + #1)
             REG_WR s15 label NEXT
             JUMP [s15]

Explanation: This prints the compiled program in three sections:

1. macros: High-level operations (pulse definitions, loops, triggers)

2. registers: Allocated data registers

3. pulses: Defined waveforms with their parameters

4. expanded ASM: The actual assembly code that runs on the tProc

Understanding this output becomes important when debugging complex sequences.

6. Summary

You have learned:

• The structure of a tProc v2 program (_initialize vs _body)

• How to define and play pulses of different styles (const, arb, flat_top)

• How to trigger readout and acquire IQ data

• How to inspect the generated assembly code

Next steps: Proceed to `02_Parameter_Sweeps.ipynb <./02_Parameter_Sweeps.ipynb>`__ to learn how to automate parameter variation and create 2D scans.
